Audit Events¶

The Audit Events service provides a centralized audit trail for the Industrial Edge Management (IEM). It records security-relevant events — such as user logins, application installations, device operations, and configuration changes — to support security monitoring, compliance, and forensic analysis.

From the Audit events page under Settings, you can enable or disable the audit service, configure reserved storage size and retention period, and download audit logs as an archive.

For details on the audit log format, see Log Format. For Identity and Access Management (IAM) events, see IAM Events.

Permission¶

Only users with the admin role can access the Audit events page.

Download Audit Logs¶

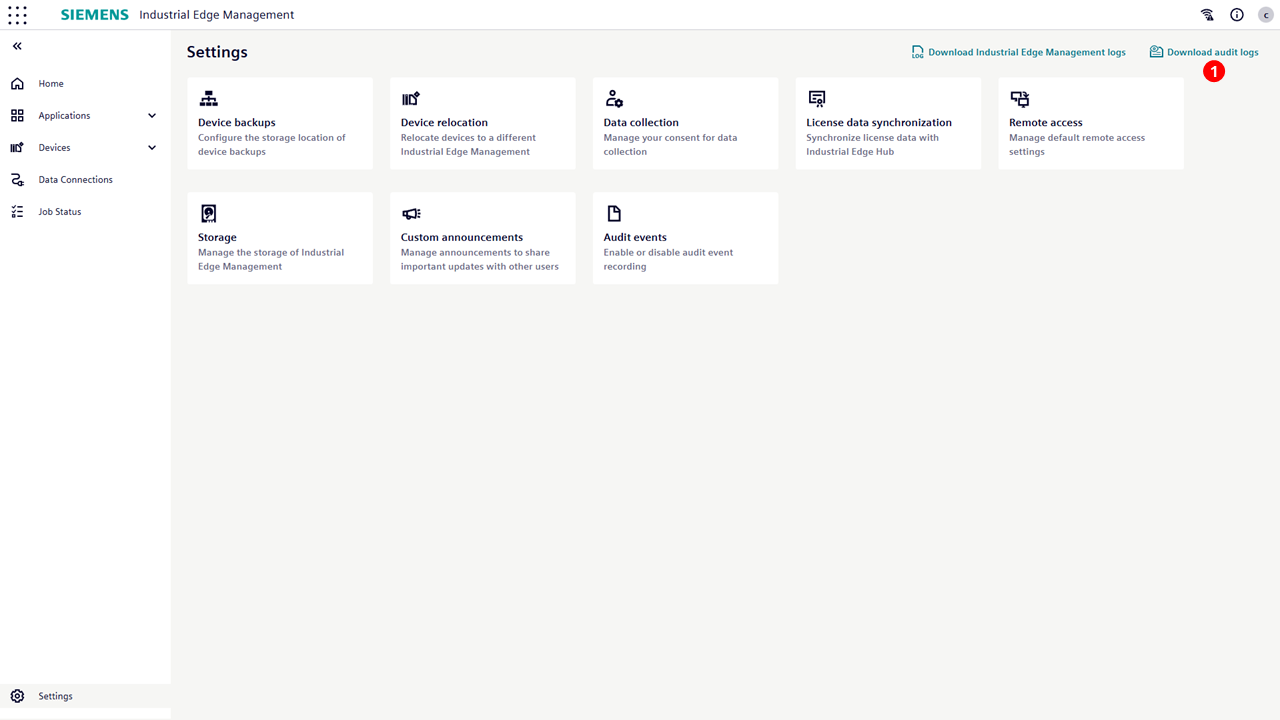

To download audit logs, navigate to the Settings page. The download button is located in the top-right corner.

Download Audit Logs

No.	Items
①	Click to download the audit logs as a `.tar.gz` archive. The archive contains rotated and decompressed log files.

The download button state changes dynamically depending on the audit service status and user permissions. The following table describes each scenario:

Scenario	Button State	Tooltip
Audit Events service enabled, log files exist	Enabled	—
Audit Events service disabled, old log files still exist	Enabled	—
Audit Events service enabled, no log files available yet	Disabled	"No audit logs available for download"
Audit Events service disabled, no log files available	Disabled	"To carry out this task, you need to enable audit events"
User lacks required permissions	Disabled	"To carry out this task, you need more permissions. Contact admin to change permissions."
Service or database is unreachable	Disabled	"Unable to determine audit log status. Please try again later."

Example of a downloaded .tar.gz archive file content:

A rotated log file:
audit-2026_05_15_11_57_46_197.log
Example audit event entry in this file:

{
  "apiVersion":1,
  "category":"audit log",
  "eventID":"iem.audit.enable.success",
  "message":"",
  "result":"success",
  "severity":5,
  "source":{
    "clientAddress":"158.226.192.212",
    "componentName":"audit-service",
    "instanceID":"my-iem-instance",
    "sessionID":"9uXnNbXhVL8Dhhwa-QbArooT",
    "userID":"590f8e2d-aca8-4850-b3c2-910acbe7675e"
  },
  "timestamp":"2026-05-15T08:57:09.461Z",
  "type":"SE_AUDIT_CFG_CHANGED"
}

Overview¶

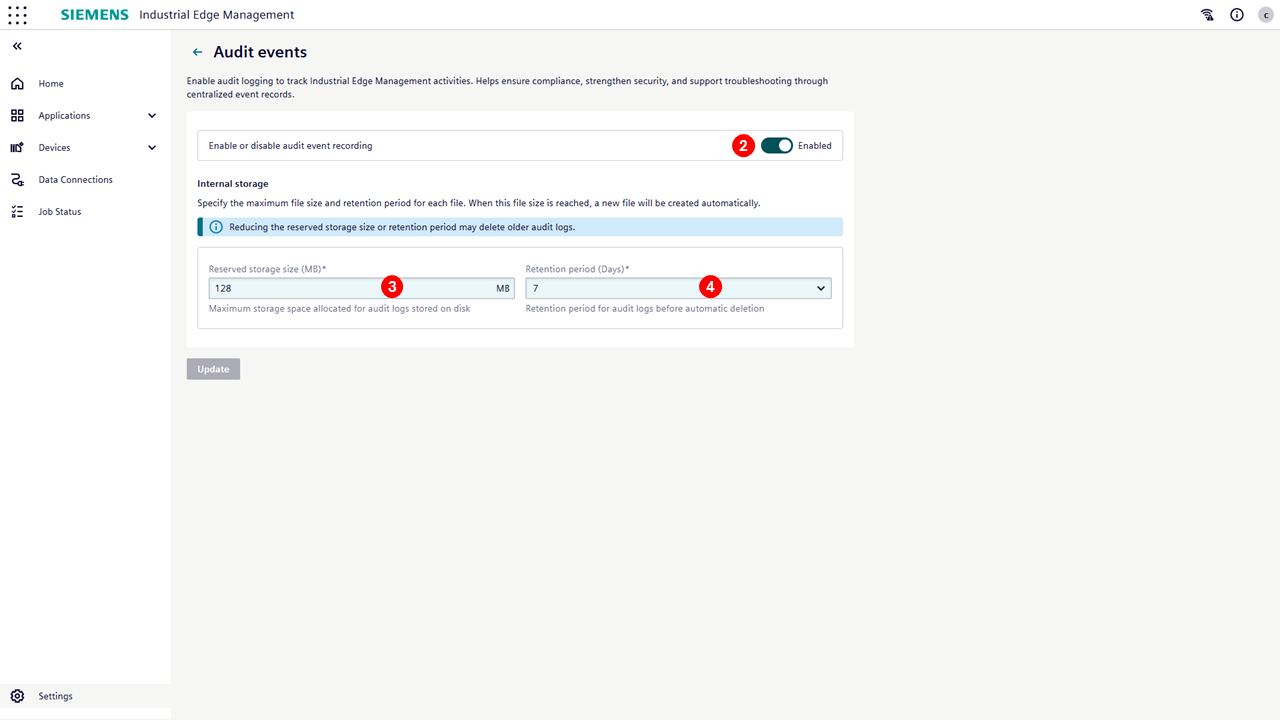

Below is an overview of the Audit Events UI, accessible under Settings > Audit events

Audit Events UI

No.	Items
②	Enable/disable audit service. If disabled, audit logs are no longer recorded.The default is enabled.
③	Set the maximum reserved storage size for audit logs (in MB). The allowed range is `32 MB` (minimum) to `5120 MB` (maximum), with a default of `128 MB`. Audit logs are stored internally and the active log file (`audit.log`) is rotated when it reaches `8 MB` in size or `daily`, whichever comes first. Rotated files are compressed using gzip. If the total storage usage exceeds the configured maximum, the oldest compressed logs are automatically deleted.
④	Set the retention period for audit logs (in days). The allowed range is `1 day` (minimum) to `30 days` (maximum), with a default of `7 days`. Log files older than the configured retention period are automatically removed. Cleanup is triggered when either the maximum storage size or the retention period is reached, whichever comes first.

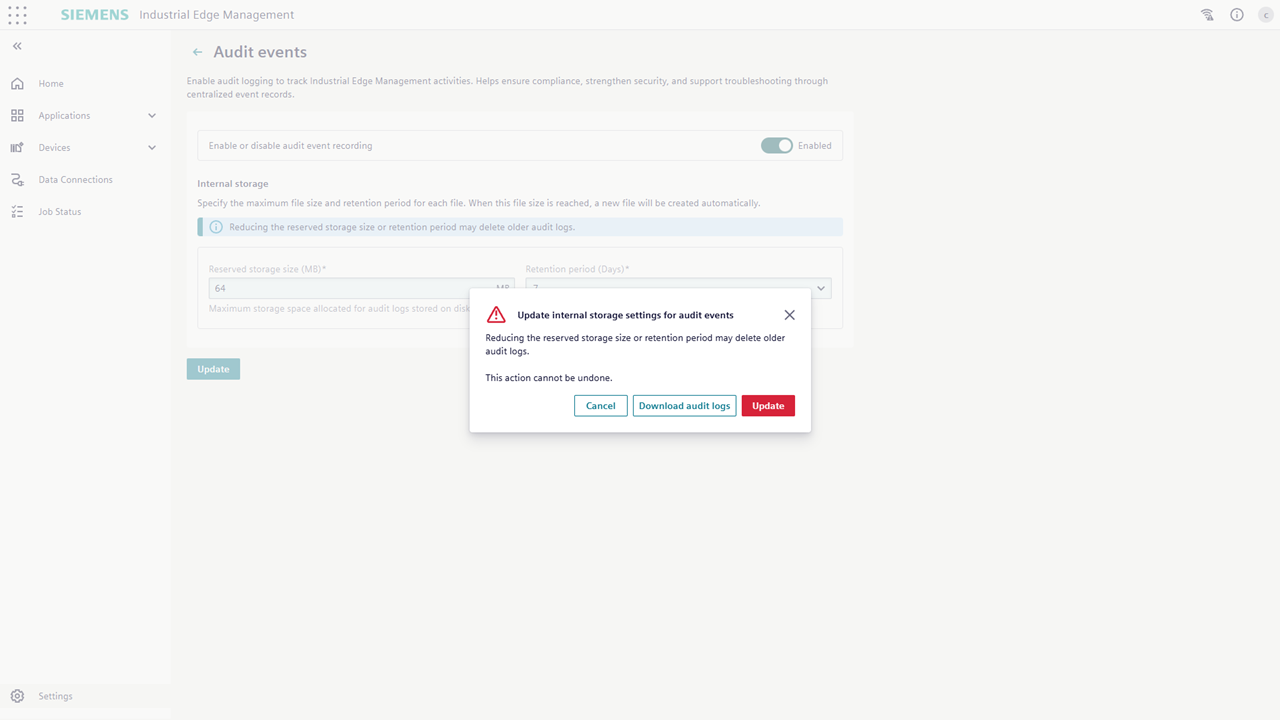

When reducing the Reserved storage size (MB) or Retention period (Days), a confirmation popup is displayed before applying the changes. This popup warns that older audit logs may be permanently deleted and the action cannot be undone. Users are given the option to download existing logs as a .tar.gz archive before proceeding or cancel the operation.

Audit Events Confirmation Popup

Audit Service Own Events¶

eventID (Routing Key)	Security Event Type	Description
`iem.audit.enable.success`	SE_AUDIT_CFG_CHANGED	Audit service enabled.
`iem.audit.enable.failure`	SE_AUDIT_CFG_CHANGED	Enabling audit service failed.
`iem.audit.disable.success`	SE_AUDIT_CFG_CHANGED	Audit service disabled.
`iem.audit.disable.failure`	SE_AUDIT_CFG_CHANGED	Disabling audit service failed.
`iem.audit.configuration.update.success`	SE_AUDIT_CFG_CHANGED	Audit configuration updated.
`iem.audit.configuration.update.failure`	SE_AUDIT_CFG_CHANGED	Audit configuration update failed.
`iem.audit.logs.download.success`	SE_AUDIT_DATA_SAVED	Audit logs downloaded.
`iem.audit.logs.download.failure`	SE_AUDIT_DATA_SAVED	Audit logs download failed.
`iem.audit.api.access.failure`	SE_ACCESS_DENIED	Audit API non-privileged user access.

Default Event Fallback¶

When an IEM component sends an audit event with an eventID that is not present in the predefined FCT list, the Audit Events service applies a default fallback mapping.

Condition	eventID	Security Event Type
Event with `success` or `failure` result	`iem.event.success` / `iem.event.failure`	`SE_OBJECT_OPERATION`
Event without a result suffix	`iem.event`	`SE_OBJECT_OPERATION`

This fallback ensures that unknown or unlisted events are still recorded and traceable.
