Apps overview

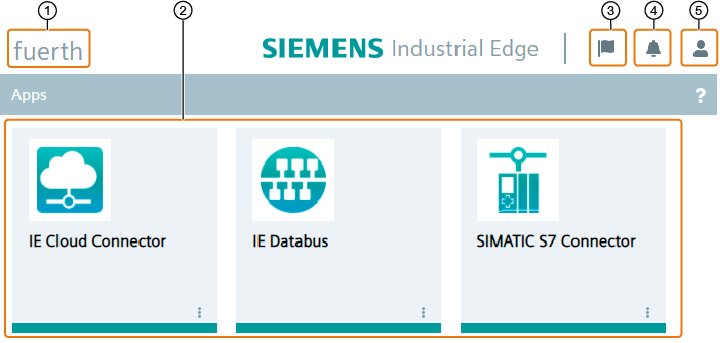

In the "Apps" screen you get an overview of all installed apps on the specific Edge Device. After you have installed an app to the Edge Device, the "Apps" screen is displayed as follows for example:

① Edge Device name
② Installed apps on the Edge Device
③ Display and hide job tasks
④ Display and hide Edge Device notifications
⑤ Sign out and edit the user profile

The icons in the upper right header area are available independently of the menu item. Once you have edited your user profile, you close the user profile by clicking "Home" underneath the header.

Launching an app

To launch an app, click the tile of the app. A new tab opens in the browser with the UI of the app.

NOTICE

UI of the app
The UI opens only for apps that support a web-based user interface.

NOTICE

Launching an app configured by a configurator
You launch apps that are configured by a configurator in the respective IEM under "Data Connections".

Edge App commands

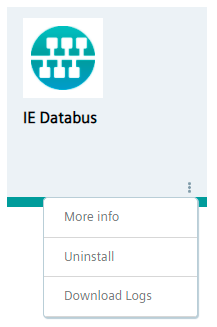

When you click the icon in the lower part of the app tile, the following drop-down list opens for example:

Behaviour of dashboard based on types of roles:

NOTICE

Devices with a runtime version lower than 1.23.0 do not support the Viewer, Operator, and AppAdmin roles.

The appearance and functionality of the dashboard vary depending on the user's role. Here's a breakdown of how it works:

• User Role Only

  If a user only has the User role and no other roles, they will not see any applications on the dashboard. The left menu will also be hidden.

• User Role and User Group

  Users with the User role who are also part of a user group will see all the applications shared with that group. The left menu will be visible based on the roles assigned to the group. If multiple applications are shared via the groups, the user will be able to see all of them.

• AppAdmin, Operator, or Viewer Roles

  Users with any of these roles will see all applications on the dashboard. The left menu will not be visible. However, if they do not have additional edge runtime permissions, they will not see the edge runtime menu. Similarly, if they don't have additional edge runtime permissions, they won't be able to manage the applications fully. They will only see the "More Info" option in the app tile's 3 dots menu.



• AppAdmin, Operator, or Viewer Roles and User Group

  Users with any of these roles who are also part of a group will see a mix of applications. This mix includes applications that the user is allowed to view based on permissions, applications shared via the group, and applications without the necessary permissions. If the user has group permissions, they will be able to see these additional permissions like Uninstall and Download Logs options in the 3 dots menu. In the "More Info" section, they can also see the Restart, Stop and Uninstall buttons.

• User is an Admin

  Users with the Admin role have all permissions. They will see all applications on the dashboard, and the left menu will be visible.
