Technical Overview of IAM

Key Use Cases

• IAM with RBAC support as foundation service for the platform.
• Coarse Grained Access based on Resource Groups.
• OIDC with Authorization Grand Flow between Gateway and Auth Server (Keycloak).

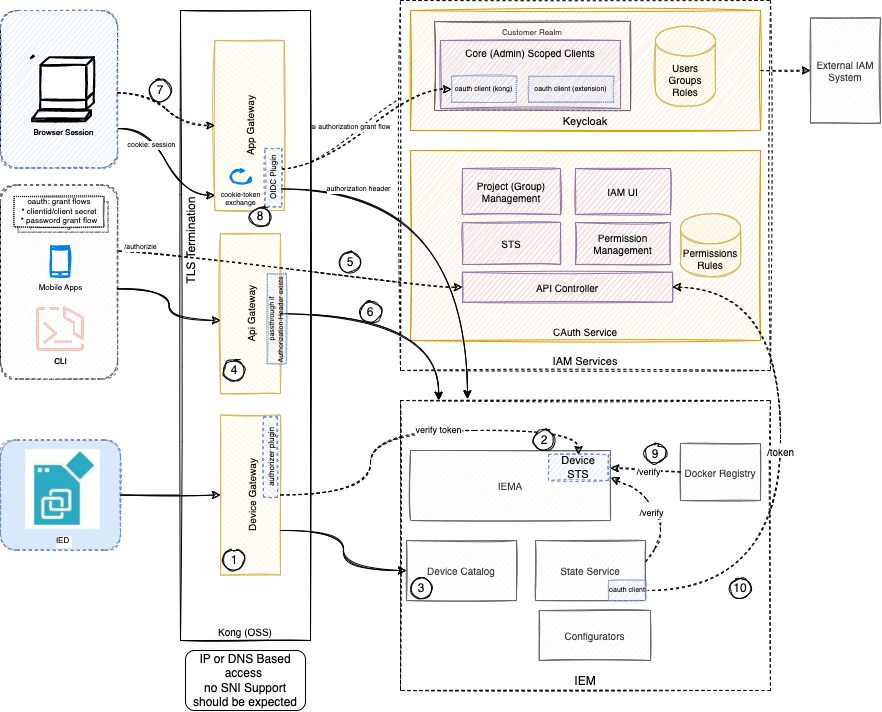

Component View

No	Components	Description
①	Device Gateway function	Device Gateway are multiple routes within the gateway managing the traffic for devices. This partially includes token exchanges with a kong plugin.
②	Device Authentication	The requests of device are forwarded to IEMA, IEMA is using public key of to validate the device token.
③	Device Catalog
④	API Gateway	API Gateway are specific routes to reach out to APIs of backend services. API Gateway is performing a token exchange if a cookie is provided.
⑤⑥	Transparent Mode of API Gateway	API Gateway is proxying the api requests to the backend without validating the authentication. For API Requests, this is the responsibility of the Backend Services.
⑦	App Gateway	App Gateway is receiving the UI/Browser traffic and is enforcing authentication by redirecting to IAM System (Keycloak).
⑧	OIDC Plugin	App/API Gateway uses a custom OIDC plugin (written in Lua) that authenticates and sets the cookie with session information.

Relations

Flows

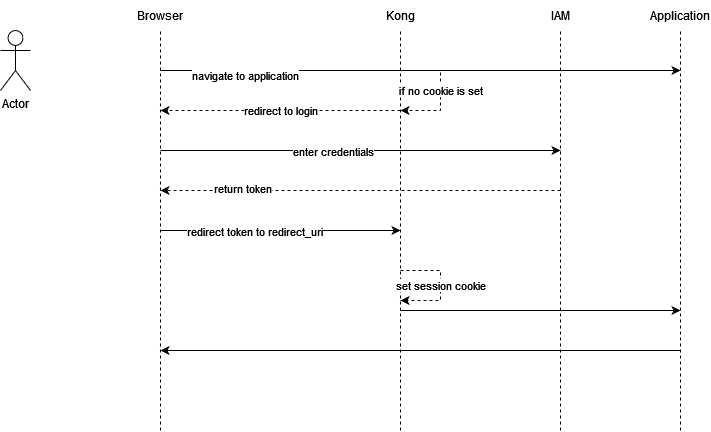

Login Flow

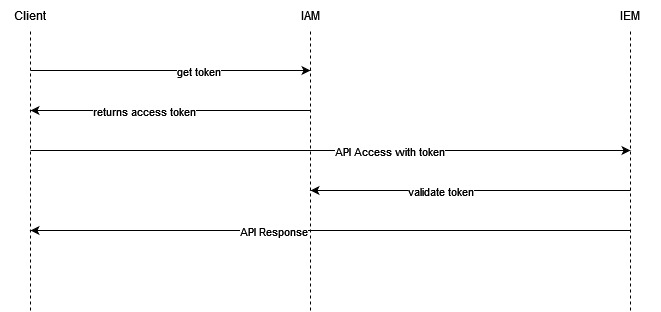

Service 2 Service

For API Access, it is possible to register additional clients in the IAM. Steps to use client to get access_token for API access Register Client Activate service account * Assign client roles to the service account

At the moment the Access is limited to the Admin Role of the IEM

Example:

curl --location --request POST 'https://<iem_ip>/auth/realms/customer/protocol/openid-connect/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=client_credentials' \
--data-urlencode 'client_id=<cliend_id>' \
--data-urlencode 'client_secret=<client_secret>'

{
    "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICI2bm9NQVg3MjJwRVFSb2FQcFlLSUtlODVhQXpZSkVqY1gzeFd0cUtWOVgwIn0.eyJleHAiOjE2NjQ5OTUxMjEsImlhdCI6MTY2NDk3MzUyMSwianRpIjoiYjUxYTE0N2EtOTFkNy00NzM2LWJkYzktOTA3M2EyNzcwODZkIiwiaXNzIjoiaHR0cHM6Ly8xOTIuMTY4LjQ5LjIvYXV0aC9yZWFsbXMvY3VzdG9tZXIiLCJhdWQiOiI0MWZmNzNjOTcxOWE0MmJkYjAzNDgzNTUxMTRjZWI4MiIsInN1YiI6ImNiMTI4YzI1LTNhZTAtNGQ0ZS1hYWFkLTk4ZDE3ODM1MzgzMCIsInR5cCI6IkJlYXJlciIsImF6cCI6InRlc3QyIiwiYWNyIjoiMSIsInJlYWxtX2FjY2VzcyI6eyJyb2xlcyI6WyJvZmZsaW5lX2FjY2VzcyIsInVtYV9hdXRob3JpemF0aW9uIiwiZGVmYXVsdC1yb2xlcy1jdXN0b21lciJdfSwic2NvcGUiOiJlbWFpbCBwcm9maWxlIiwiZW1haWxfdmVyaWZpZWQiOmZhbHNlLCJjbGllbnRJZCI6InRlc3QyIiwiY2xpZW50SG9zdCI6IjE5Mi4xNjguNDkuMSIsInByZWZlcnJlZF91c2VybmFtZSI6InNlcnZpY2UtYWNjb3VudC10ZXN0MiIsImNsaWVudEFkZHJlc3MiOiIxOTIuMTY4LjQ5LjEifQ.XfdSd0O0vTQmVEbzSZlXmoHYhlPWgTg8oes8Gs9Dn_M6AVkomwweXhL6psx3V2T3_yzLnZhtf5kCsHgjLwk80AEhrdmbQsAmwuAl7EF8s4MMBocIeO-hp5F2JkylAX3nbF5iqP9_Ecjjht4O4ilLLKjKtFKPcRkXFEgzNxekfGt6adH0v5dGIMd8DLVFpJq5UMM7wtbMusTuXRP_SeX1Y1AnCRkM0j-smGWYpbEIE-rax-UAyiaznU9Q87JoOXG75Q5_xiC0BTI8Gb8wpoI99lAFZO6Gp4iCR0iPEHLVQErW58cj26dxObHoMk9OTNq-UL4LPdOcRgbuNRhU9pq6eQ",
    "expires_in": 21600,
    "refresh_expires_in": 0,
    "token_type": "Bearer",
    "not-before-policy": 0,
    "scope": "email profile"
}
