Library¶
The Library screen lists all products for which you purchased a license.
System Apps are included in the purchase of the Industrial Edge Hub Access, so you do not have to purchase a license for System Apps. You can directly copy the System Apps to the catalog of an IEM instance.
Industrial Edge Hub supports the distribution of the following software packages as well as device applications:
- Industrial Edge Virtual Device
- Industrial Edge Own Device
- SIMATIC Project SDC
- Visual Inspection Engineering Tool

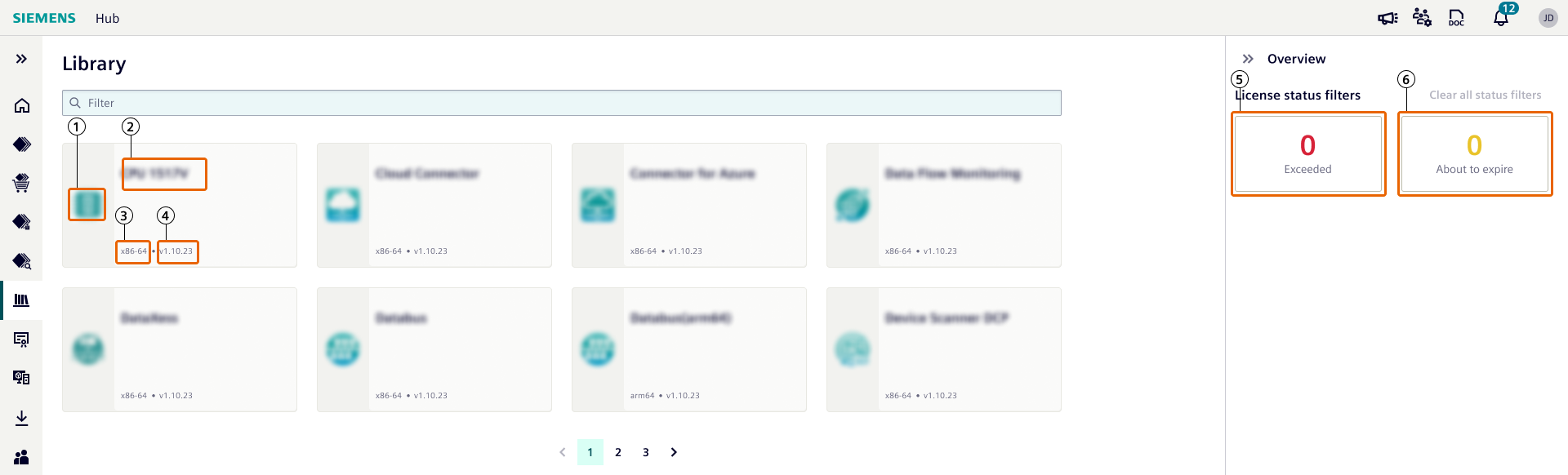

The following figure shows an example of the Library screen:
| ① | Product icon |
| ② | Product name |
| ③ | Architecture |
| ④ | Product version |
| ⑤ | Pre-defined filter for quick access to non-compliant products |
| ⑥ | Pre-defined filter for quick access to products using at least 1 license which is about to expire |
To purchase a license for a product, visit the Industrial Ege Marketplace.
By clicking a product tile, you can check the details of the respective product.

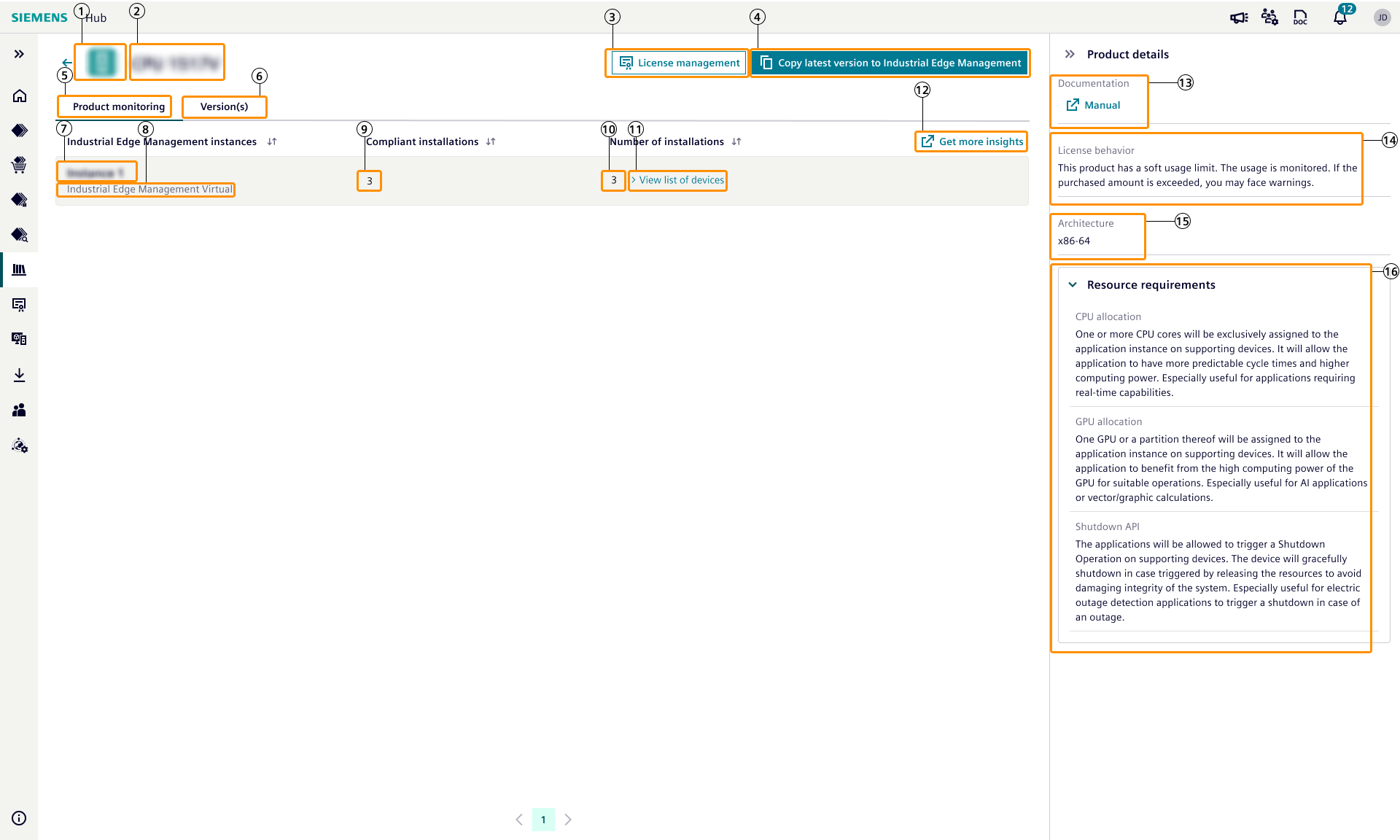

An example for details of a device application:
| ① | Product icon |
| ② | Product name |
| ③ | Redirection to license management and filtering licenses of viewed product. |
| ④ | Copying the latest version to Industrial Edge Management |
| ⑤ | Monitoring details is shown per Industrial Edge Management |
| ⑥ | Semantically latest version metadata is shown |
| ⑦ | Name of the Industrial Edge Management instance |
| ⑧ | Type of the Industrial Edge Management instance |
| ⑨ | Shows number of installations which has proper license per Industrial Edge Management instance |
| ⑩ | Shows total number of installations per Industrial Edge Management instance |
| ⑪ | Opens a modal which shows list of Industrial Edge Devices where viewed device application is installed |
| ⑫ | Redirection link to this document |
| ⑬ | Redirection link to the viewed product's documentation |
| ⑭ | Explains the license behavior of the product |
| ⑮ | Architecture |
| ⑯ | Resource requirements such as CPU, GPU, NIC and Shutdown are configured for the application. |
NOTICE
For more details, refer to Copying an app to IEM instances.

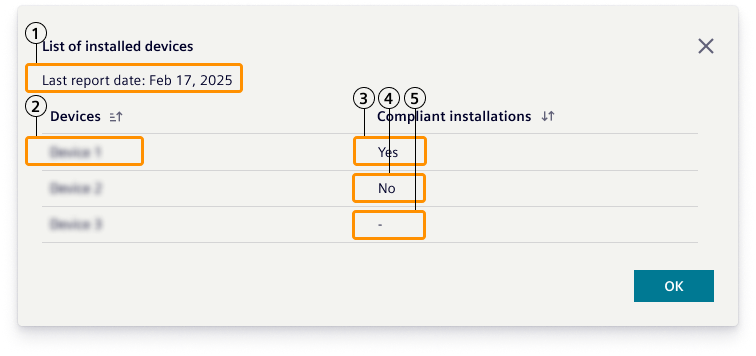

Device List Modal¶
| ① | Last synchronization date of license data |
| ② | Name of the Industrial Edge Device |
| ③ | "Yes" indicates that a license directly assigned to this device |
| ④ | "No" indicates that no license found for this device |
| ⑤ | "-" indicates that a license assigned to Industrial Edge Management. In this case, users needs to decide if this device deserves the license assigned to Industrial Edge Management |

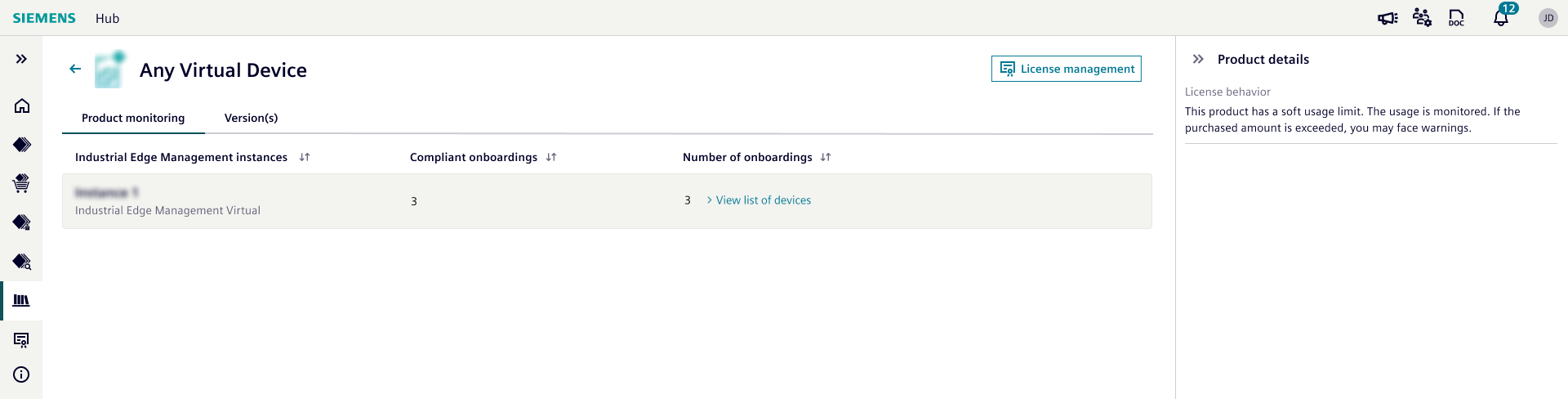

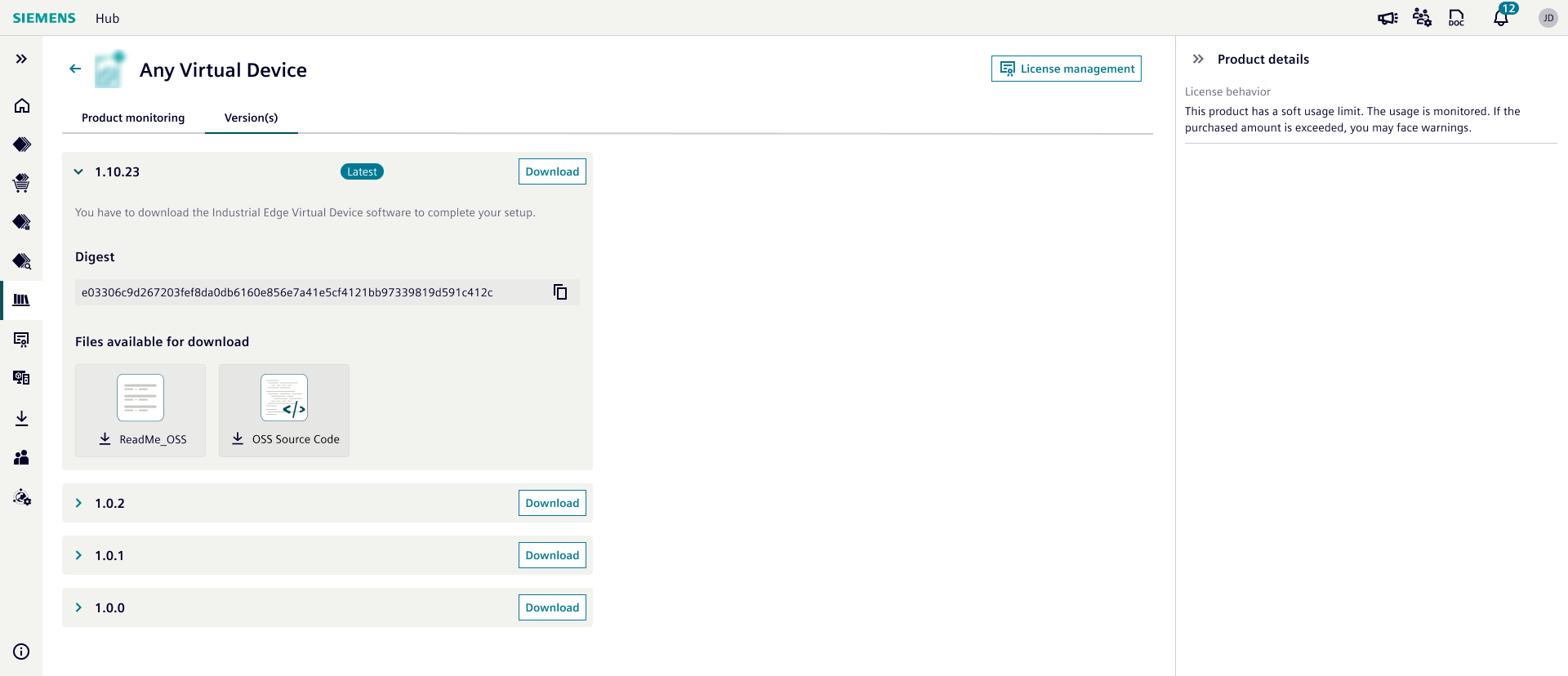

An example for details of:
!!! info "NOTICE"
The software package provides an SHA256 checksum to verify file integrity. For more information on file integrity verification, see [Industrial Edge file integrity](../../../security/security_overview/ie_components_security_measures/ie_file_integrity.md).
License Monitoring¶
License monitoring starts with synchronization of license data from Industrial Edge Management.
You find more information on synchronization of license data from the IEM to the IE Hub in the Admin UI > Licenses
subsection in the Industrial Edge Management - Operation manual.
NOTICE
If an IEM instance is deleted from the IE Hub, license data that belong to the deleted IEM instance will be deleted too.
Industrial Edge Hub uses following parameters for license monitoring per product type:
- Device application: Number of installation
- Industrial Edge Device Management License: Number of onboarded Industrial Edge Devices to Industrial Edge Managements
- Mendix Device License: Number of Industrial Edge Devices which mendix applications are installed.
- Virtual Devices: Number of onboarded virtual devices of the same type.
Industrial Edge Hub shows compliance warnings if number of installations / onboarding / enablement is more than number of licenses assigned to Industrial Edge Management or Industrial Edge Device.
NOTICE
Licenses can be assigned on License Management menu. For more information on license assignment, see License Management.

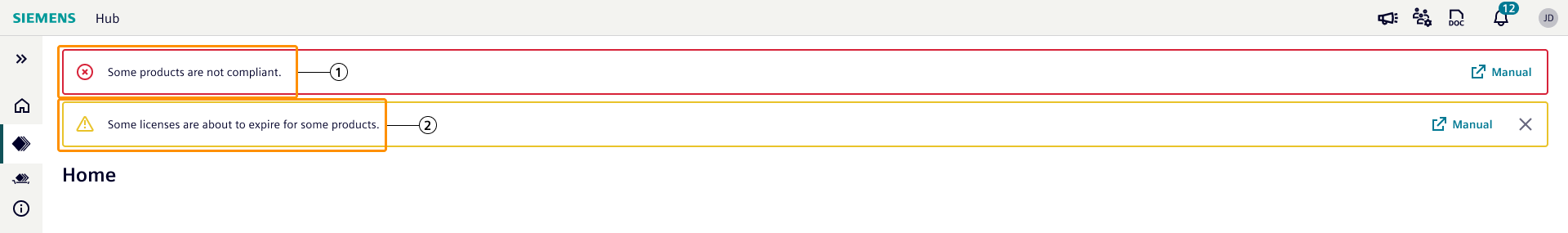

| ① | Indicates at least 1 product is not compliant in terms of licensing |
| ② | Indicates at least 1 license being used by a product is about to expire |
In the library section, the
icon highlights the number of products which experiences a licensing issue:
- Compliancy issue
- At least 1 license which is about to expire.
| ① | the number of products which experiences a licensing issue |
| ② | Exceeded warning |
| ③ | About to expire warning |
| ④ | Pre-defined filter for quick access to non-compliant products |
| ⑤ | Pre-defined filter for quick access to products using at least 1 license which is about to expire |

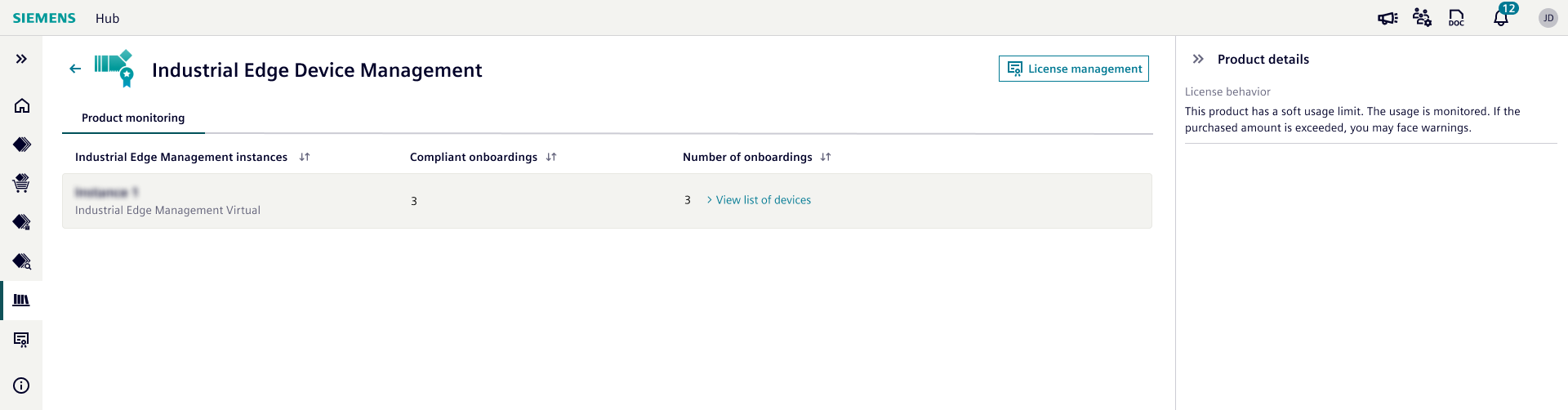

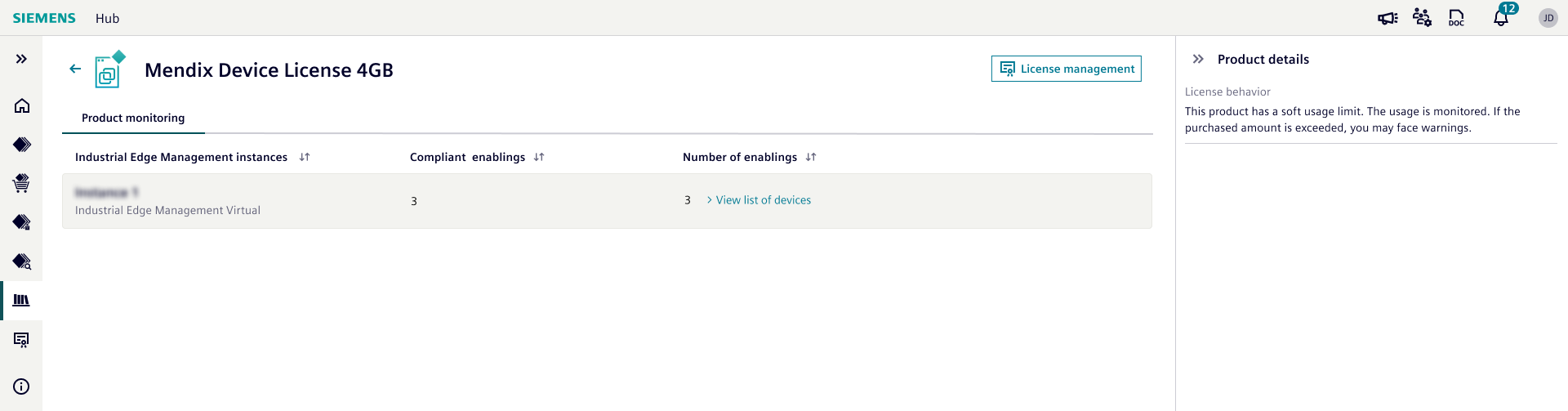

Exceeded warning text changes depending on the monitored parameters:

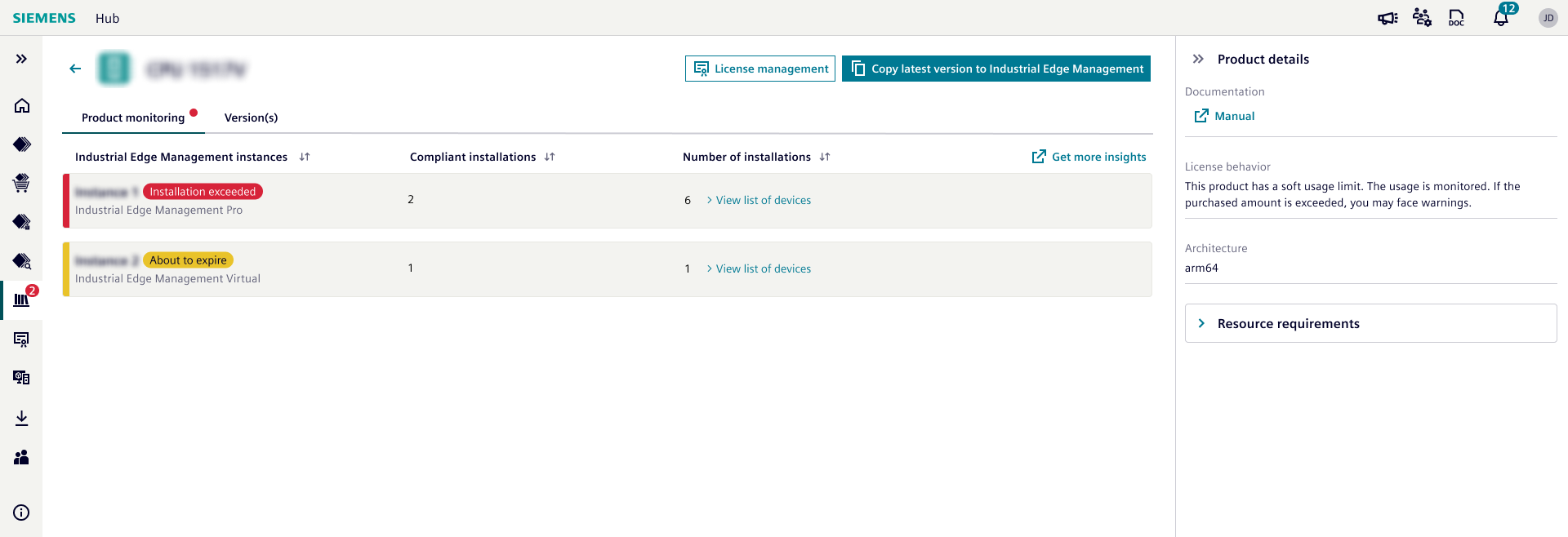

The detail of a device application with warnings:
Solutions to resolve compliancy issue:
- Assign already purchased licenses to related Industrial Edge Managements or Industrial Edge Devices.
- Purchase more licenses from Industrial Edge Marketplace and assign new licenses to related Industrial Edge Managements or Industrial Edge Devices.
- Uninstall device applications / offboard industrial edge devices and synchronize license data from Industrial Edge Management.
NOTICE
Licenses can be assigned on License Management menu. For more information on license assignment, see License Management.
NOTICE
You find more information on synchronization of license data from the IEM to the IE Hub in the Admin UI > License subsection.
Industry Mall Licenses¶
Industry Mall licenses are not being monitored by Industrial Edge Hub automatically. There will be no compliance warnings in this case for the Hubs which purchased at least 1 license. However, this doesn't mean license compliancy is not needed. Hubs are responsible to monitor their usage on their own.
Library overview will not be available as shown below.

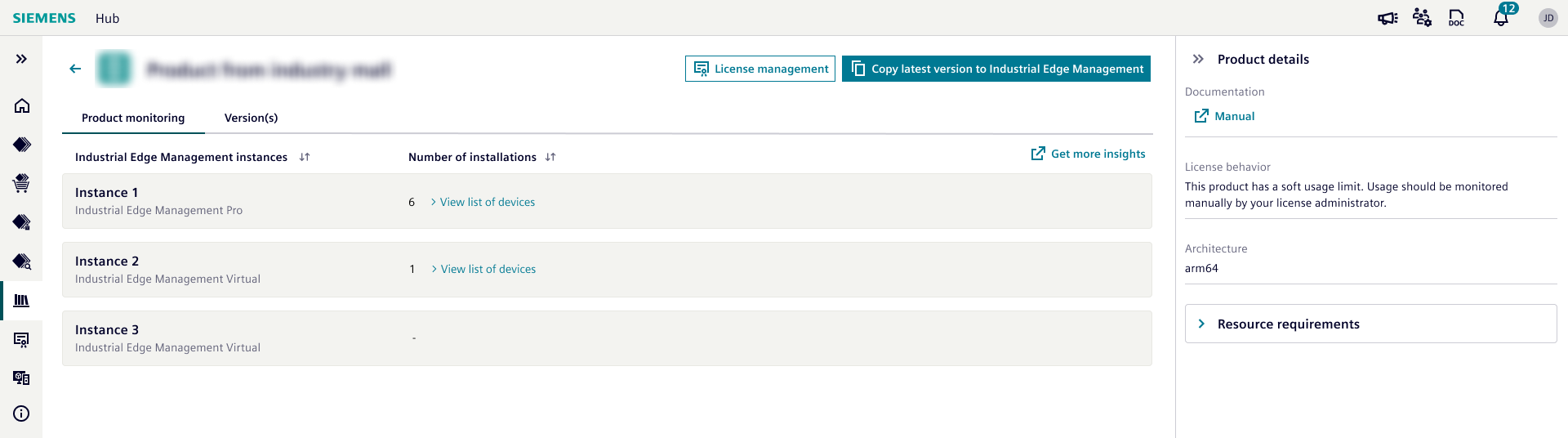

Only number of installation/onboarding will be shown as below.
NOTICE
Number of purchased licenses can be viewed in License Management menu.
