Assign Licenses to Industrial Edge Management¶

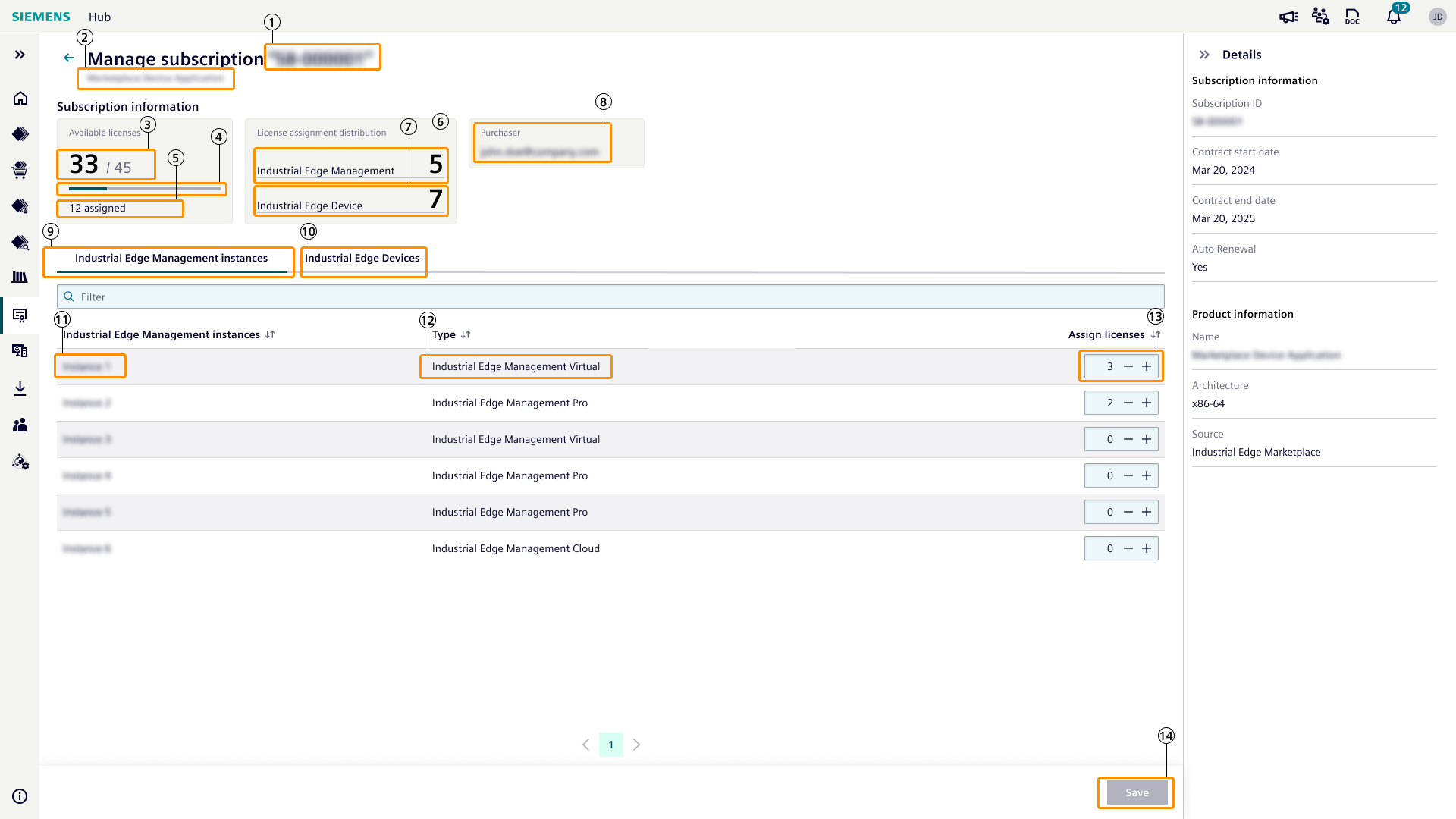

Once you click the manage button on license management menu, the subscription detail page will be shown as below:
| ① | Subscription ID |
| ② | Product name |
| ③ | Not assigned / Total licenses of viewed subscription |
| ④ | Not assigned / Total licenses progress bar |
| ⑤ | Assigned licenses of viewed subscription |
| ⑥ | Assigned licenses to directly Industrial Edge Managements |
| ⑦ | Assigned licenses to directly Industrial Edge Devices |
| ⑧ | Purchaser of the viewed subscription |
| ⑨ | Shows list of created Industrial Edge Managements |
| ⑩ | Shows onboarded Industrial Edge Devices |
| ⑪ | Name of the Industrial Edge Management instance |
| ⑫ | Type of the Industrial Edge Management instance |
| ⑬ | Enter the amount of license per Industrial Edge Management |
| ⑭ | Save button stores the license assignment data |
NOTICE
If licenses are assigned to Industrial Edge Managements, Industrial Edge Hub cannot decide which Industrial Edge Device deserves the assigned licenses. This means that Industrial Edge Hub cannot show compliancy information for installation / onboarding / enablement of products per Industrial Edge Device. You should decide if the device deserves the installation of a device application or not.
Assign Licenses to Industrial Edge Devices¶

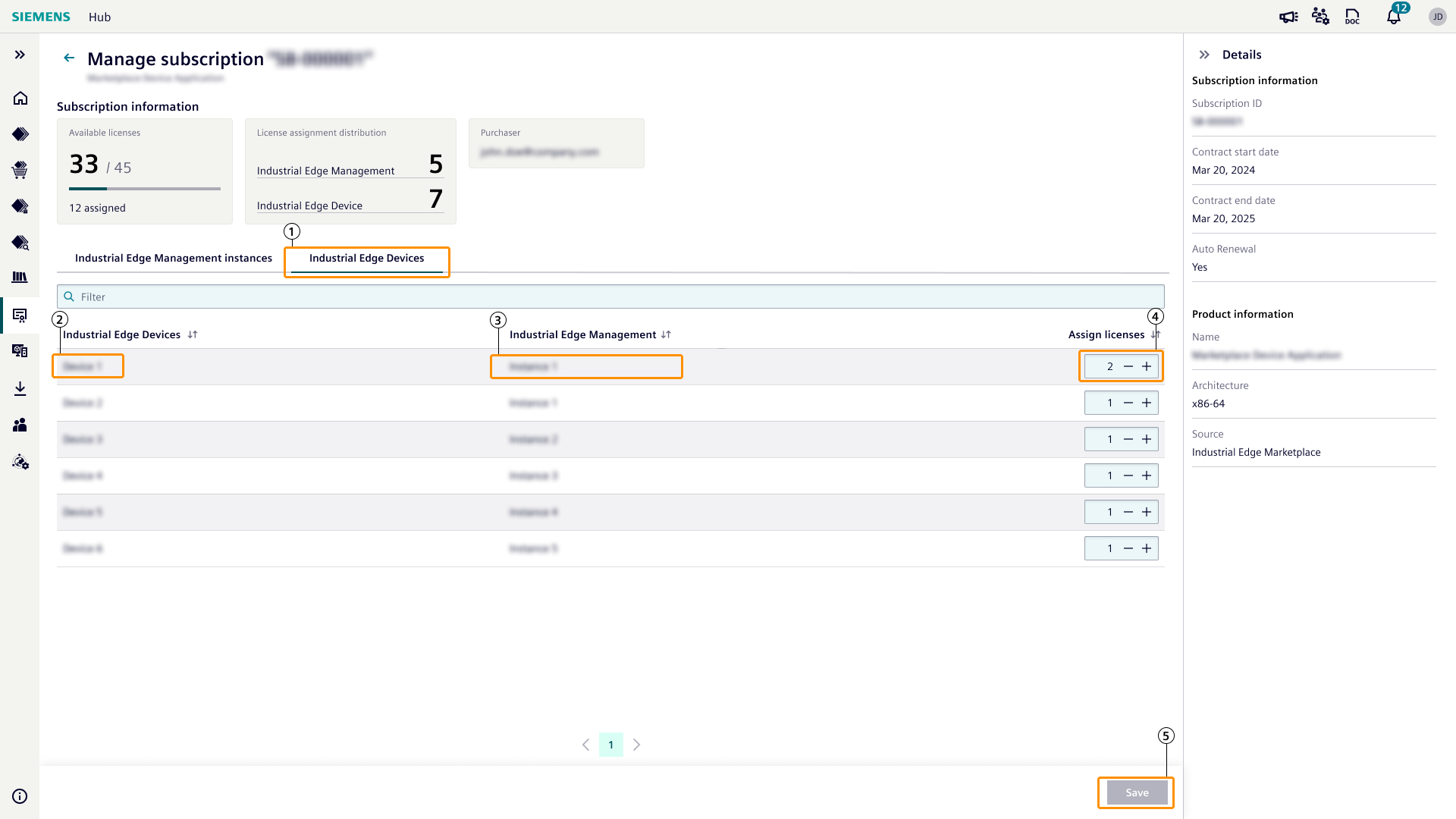

Once you click Industrial Edge Devices tab on subscription details, subscription detail page will be shown as below:
NOTICE
Device list is filled with license data synchronized from Industrial Edge Managements. You find more information on synchronization of license data from the IEM to the IE Hub in the Admin UI > Licenses subsection in the Industrial Edge Management - Operation manual.
| ① | Shows onboarded Industrial Edge Devices |
| ② | Name of the Industrial Edge Device |
| ③ | Name of the Industrial Edge Management which device is onboarded to |
| ④ | Enter the amount of license per Industrial Edge Management |
| ⑤ | Save button stores the license assignment data |
NOTICE
If licenses are assigned to Industrial Edge Devices, Industrial Edge Hub knows which Industrial Edge Device deserves which licenses. This means that Industrial Edge Hub can show compliancy information for installation / onboarding / enablement of products per Industrial Edge Device.
