Downloading license inventory¶

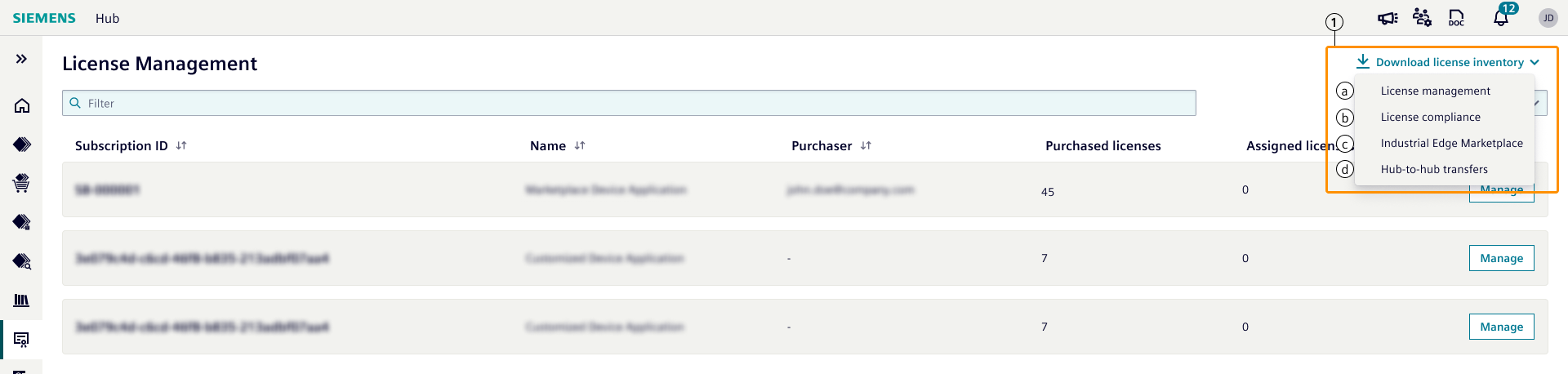

License Inventory can be downloaded on License Management menu. The following figure shows where to download license
inventory.
NOTICE
It is the user's responsibility to protect and secure any exported license-related data. Please ensure compliance with data protection policies and best practices.
| ① | Button to see all downloadables. |
| ⓐ | Downloads assignment information of each license from Industrial Edge Marketplace or Hub-to-Hub transfers. |
| ⓑ | Downloads license compliance information. License compliance is the comparison "what is synchronized from each Industrial Edge Management as license data?" vs "what is assigned to Industrial Edge Management / Industrial Edge Devices?". |
| ⓒ | Downloads all purchased subscription information which are purchased from Industrial Edge Marketplace. |
| ⓓ | Downloads all provision information received via Hub-to-Hub transfer. |
License management:
Following columns will be shown in the downloaded Excel.
| Group Name | Column Name | Column Description | Column Value |
| Subscription Information | |||
| Source | Where the licenses purchased from | ||
| Purchaser | The email address of the Industrial Edge Marketplace purchaser | Left empty for Hub-to-Hub transferred orders | |
| Order ID | Order identification number for single/multiple product in a single purchase | Left empty for Hub-to-Hub transferred orders | |
| Subscription ID | Individual product subscription identifier within purchase | ||
| Auto Renewal | The indicator if assigned licenses will be renewed automatically via Industrial Edge Marketplace when the contract end date comes | ||
| Contract End Date | Renewal/expiration date based on auto-renewal setting | ||
| Product Name | Name of the purchased product from Industrial Edge Marketplace | ||
| License Management Information | |||
| Number of Assigned Licenses | Number of licenses assigned to Industrial Edge Management / Device | ||
| Assigned Industrial Edge Management | Name of Industrial Edge Management which licenses are assigned | ||
| Assigned Industrial Edge Device | Name of Industrial Edge Device which licenses are assigned | ||
| Syncronized License Data per Product and Industrial Edge Device | |||
| Installed/Onboarded/Enabled |
- "Installed" is for Device Applications - "Onboarded" is for Industrial Edge Management License or Virtual Devices - "Enabled" is for Mendix Device License |
Installed is for Device Applications; - "Yes" only if the device application is installed to assigned IED on assigned IEM. - "No" only if the device application is not installed to assigned IED on assigned IEM. - Left empty only if the license floating on assigned IEM. Onboarded is for Industrial Edge Management License; - "Yes" only if assigned IED is onboarded to assigned IEM - Left empty only if the license floating on assigned IEM. Onboarded is for Virtual Devices; - "Yes" only if assigned virtual IED is onboarded to assigned IEM - "Left" empty only if the license floating on assigned IEM. Enabled is for Mendix on Edge; - "Yes" only if at least 1 (one) mendix application is installed to assigned IED on assigned IEM. - "No" only if at least 1 (one) mendix application is not installed to assigned IED on assigned IEM. - Left empty only if the license floating on assigned IEM. For Add-ons; - Always Empty |
License compliance:
Following columns will be shown in the downloaded Excel.
| Group Name | Column Name | Column Description | Column Value |
| Synchronized Industrial Edge Management Information | |||
| Industrial Edge Management Name | Name of the Industrial Edge Management which license data belongs to | ||
| Synchronized Date | Last date when Industrial Edge Management synchronize license data | ||
| Industrial Edge Management License Compliance Status | Comparison of assigned licenses vs synchronized license data | - "Compliant" if all the required licenses are assigned - "Non-compliant" if not enough license assigned |
|
| Non-compliant Start Date | Last date when Industrial Edge Management becomes non-compliant. | ||
| Industrial Edge Management Type | Type of the Industrial Edge Management which license data belongs to | ||
| Industrial Edge Management Version | Version of the Industrial Edge Management which license data belongs to | ||
| Synchronized Industrial Edge Device Information | |||
| Industrial Edge Device Name | Name of the onboarded Industrial Edge Device to the Industrial Edge Management which license data belongs to | ||
| Industrial Edge Device Type | Type of the onboarded Industrial Edge Device to the Industrial Edge Management which license data belongs to | ||
| Industrial Edge Device RAM Capacity | RAM Capacity of the onboarded Industrial Edge Device to the Industrial Edge Management which license data belongs to | ||
| Industrial Edge Device Management License Status | Status of Industrial Edge Device Management License assignment for the Industrial Edge Device | - "License Assigned", if license is directly assigned to the Industrial Edge Device - "License Floating", if license is assigned to the Industrial Edge Management which Industrial Edge Device is onboarded - "License Missing", if no license assigned either to the Industrial Edge Device or Industrial Edge Management |
|
| Installed Device Application Information | |||
| Installed Device Application | Name of the Device Application which is installed to Industrial Edge Device | ||
| Device Application License Status | Status of Device Application's essential product assignment for the Industrial Edge Device | - "License Assigned", if license is directly assigned to the Industrial Edge Device - "License Floating", if license is assigned to the Industrial Edge Management which Industrial Edge Device is onboarded - "License Missing", if no license assigned either to the Industrial Edge Device or Industrial Edge Management |
|
| Side-loaded to Industrial Edge Management | Device Application is known or not known by Industrial Edge Hub | "Yes" if Device Application is not known to Industrial Edge Hub | |
| Developed with Mendix | Device Application is developed with Mendix or not | "Yes" if Device Application is developed with Mendix |
Industrial Edge Marketplace:
Following columns will be shown in the downloaded Excel.
| Column Name |
| Order ID |
| Subscription ID |
| Purchaser |
| Product ID |
| Product Name |
| Quantity |
| Auto Renewal |
| Contract Start Date |
| Contract End Date |
| Bundle ID |
| Bundle Name |
Hub-to-Hub transfers:
Following columns will be shown in the downloaded Excel.
| Column Name |
| Subscription ID |
| Provisioner Hub |
| Product Name |
| Quantity |
| Acceptance Date |
| Expiration Date |
