Create App Version with Reverse Proxy¶

After creating application using iectl publisher standalone-app create

To create an app version, you can use the NGINX reverse proxy to redirect traffic to your application. Below yaml is used as an example.

version: "2.4"
services:
  nginx:
    image: nginx:alpine
    restart: always
    mem_limit: 200m

To set the application version up, use the following command:

iectl publisher standalone-app version create \
    --appname "Example App" \
    --yamlpath "/path/to/folder/with/docker-compose.yaml" \
    --versionnumber "1.0.0" \
    --nginxjson '{"nginx":[{"name":"nginx","protocol":"HTTP","port":"80","headers":"{\"proxy_http_version\":\"1.1\",\"proxy_set_header Upgrade\":\"$http_upgrade\",\"proxy_set_header Connection\":\"\\\"upgrade\\\"\",\"proxy_set_header Host\":\"$host\",\"proxy_set_header X-Real_IP\":\"$remote_addr\",\"proxy_set_header X-Forwarded-For\":\"$proxy_add_x_forwarded_for\",\"proxy_set_header X-Forwarded-Protocol\":\"$scheme\",\"proxy_set_header X-Forwarded-Host\":\"$host\",\"proxy_set_header X-Forwarded-Port\":\"$server_port\",\"proxy_set_header X-Forwarded-Uri\": \"$request_uri\"}","rewriteTarget":"","subPath":"","isSecureRedirection":true}]}' \ # nginxjson is json map of docker compose service names and arrays of reverse proxy settings.
    --redirectsection "nginx" \ # servicename
    --redirecttype "FromBoxReverseProxy" \ # type: redirect via reverse proxy
    --redirecturl "ui/" \   #  URL path matching pattern: name of location (name + rewriteTarget) with a trailing slash and no leading slash
    --restredirecturl "" \ # subpath to be added

When the app is installed on an Edge Device, the NGINX settings would look similar to the following example, assuming the service IP in the proxy-redirect network is 10.10.10.10:

location = /ui {
    rewrite /ui/(.*) /$1 break;
    rewrite (^/ui)$ $1/ permanent;
}
location ~* ^/ui\/ {
    auth_request /auth;
    rewrite /ui/(.*) /$1 break;
    rewrite /ui/ / break;
    rewrite (^/ui)$ $1/ permanent;
    proxy_pass http://10.10.10.10:80;
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
proxy_set_header Host $host;
proxy_set_header X-Real_IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Protocol $scheme;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Port $server_port;
proxy_set_header X-Forwarded-Uri: $request_uri;
}

NOTICE

This configuration already includes recommended directives to support accessing your application with remote access from IEM. Please carefully consider rewriteTarget and redirecturl as well as restredirecturl like shown in the example.

Redirect configuration¶

During application version creation, you can configure the redirection to your application. This configuration is used when a user clicks on the tile of your application in the device UI.

Flag	Example Value	Description
`--redirectsection`	`"nginx"`	Name of the service it should be redirected to.
`--redirecttype`	`"FromBoxReverseProxy"`	Redirect type used for reverse proxy on the box (device).
`--redirecturl`	`"ui/"`	URL path of your interface matching pattern: name of location (name + rewriteTarget) with a trailing slash and no leading slash.
`--restredirecturl`	`""`	Subpath to be added to the URL during redirection.

NGINX JSON¶

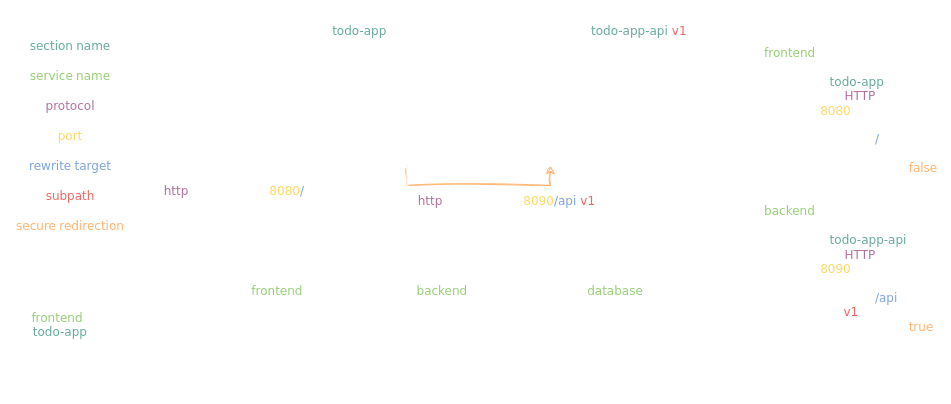

The JSON string passed as the nginxjson argument is a map of all container services that should be exposed through the reverse proxy.

Each service has a list of section names that will be redirected to that service:

The name defines the section under which the service will be available. For example, if this is set to dashboard, all requests coming to https://<device ip>/dashboard/ and all subpaths will be reverse proxied to the service.
If a service should not be available under a direct string, an additional path can be added using the subpath argument. For example, if we set it to foo/bar, the service would be available under https://<device ip>/dashboard/foo/bar/.
The protocol field determines if incoming HTTPS requests should be terminated at the reverse proxy ("HTTP") and forwarded unencrypted, or if another secure connection should forward the traffic encrypted to the service.
The port defines the port of the service to which the traffic should be passed. The port cannot be exposed to the host at the same time.
The rewriteTarget setting determines how incoming requests are rewritten. If set to the default "", requests are passed to the root, and any subdirectories after the name and subpath will be passed along. If the rewriteTarget is set to "/baz", an incoming request to https://<device ip>/dashboard/foo/bar/file.txt will be forwarded to the service as http://<service ip>/baz/file.txt.
isSecureRedirection allows only authenticated traffic to be redirected to your service.
When bypassUrlDecoding is set, all requests will be forwarded to the service without rewriting the request without the name and subpath.
If your application requires special proxy directives to be set, they can be added as an encoded JSON string in the headers field.

NOTICE

To pass informations about the request to the service a number of headers like X-Forwarded-For, X-Forwarded-Proto and X-Forwarded-Host can be used using the proxy_set_header directive.

Example NGINX configuration¶

The following is an example NGINX configuration that can be used to enable remote access to an application from the Industrial Edge Management. This configuration includes several recommended proxy directives to ensure secure and efficient communication.

{
  "servicename": [
        {
            "name": "nginx",
            "protocol": "HTTP",
            "port": "80",
            "headers": "{\"proxy_http_version\":\"1.1\",\"proxy_set_header Upgrade\":\"$http_upgrade\",\"proxy_set_header Connection\":\"\\\"upgrade\\\"\",\"proxy_set_header Host\":\"$host\",\"proxy_set_header X-Real_IP\":\"$remote_addr\",\"proxy_set_header X-Forwarded-For\":\"$proxy_add_x_forwarded_for\",\"proxy_set_header X-Forwarded-Protocol\":\"$scheme\",\"proxy_set_header X-Forwarded-Host\":\"$host\",\"proxy_set_header X-Forwarded-Port\":\"$server_port\",\"proxy_set_header X-Forwarded-Uri\": \"$request_uri\"}",
            "rewriteTarget": "",
            "subPath": "",
            "isSecureRedirection": false,
            "bypassUrlDecoding": false
        }
    ]
}

List of Supported Proxy Directives

proxy_bind
proxy_buffer_size
proxy_buffering
proxy_buffers
proxy_busy_buffers_size
proxy_cache
proxy_cache_background_update
proxy_cache_bypass
proxy_cache_convert_head
proxy_cache_key
proxy_cache_lock
proxy_cache_lock_age
proxy_cache_lock_timeout
proxy_cache_max_range_offset
proxy_cache_methods
proxy_cache_min_uses
proxy_cache_purge
proxy_cache_revalidate
proxy_cache_use_stale
proxy_cache_valid
proxy_connect_timeout
proxy_cookie_domain
proxy_cookie_flags
proxy_cookie_path
proxy_force_ranges
proxy_headers_hash_bucket_size
proxy_headers_hash_max_size
proxy_hide_header
proxy_http_version
proxy_ignore_client_abort
proxy_ignore_headers
proxy_intercept_errors
proxy_limit_rate
proxy_max_temp_file_size
proxy_method
proxy_next_upstream
proxy_next_upstream_timeout
proxy_next_upstream_tries
proxy_no_cache
proxy_pass_header
proxy_pass_request_body
proxy_pass_request_headers
proxy_read_timeout
proxy_redirect
proxy_request_buffering
proxy_send_lowat
proxy_send_timeout
proxy_set_body
proxy_set_header
proxy_socket_keepalive
proxy_ssl_certificate
proxy_ssl_certificate_key
proxy_ssl_ciphers
proxy_ssl_conf_command
proxy_ssl_crl
proxy_ssl_name
proxy_ssl_password_file
proxy_ssl_protocols
proxy_ssl_server_name
proxy_ssl_session_reuse
proxy_ssl_trusted_certificate
proxy_ssl_verify
proxy_ssl_verify_depth
proxy_store
proxy_store_access
proxy_temp_file_write_size
proxy_temp_path

Info

More explanation about Reverse Proxy options can be found in the Industrial Edge App Publisher Docs under Configuring the Network Page.
