Quick Start Guide

Add App Configuration

Industrial Edge supports specific app configuration types. For an in-depth documentation about the different configuration types and their use cases, refer to the Industrial Edge Management - Operation manual.

Following app configuration types are available:

Each of these types can be added to your app via the IECTL respectively via the IE App Publisher.

NOTICE

When uploading an app version to the portal, the app configuration is synchronized. Any configurations in the portal that do not match the app configuration uploaded with the new version are deleted.

Unversioned Configuration

Unversioned configurations are user provided inputs of any content type (i.e. text files, binary files, etc.).

You add unversioned configurations with the following command:

$ iectl publisher standalone-app app-config add \
    --appname "my cool app" \
    --configname "Displayed to the end-user during deployment"  \
    --configdescription "displayed to the end-user during deployment"   \
    --hostpath "volumename"  \     # Or relative host volume path, e.g. "./cfg-data"
    --subpath "subdir/"   \         # Will be added behind the volume / bind mount point
    --secure  \                    #  Enabling the secure flag only stores the configuration encrypted on the Industrial Edge Management, but not on the Industrial Edge Device

NOTICE

The hostpath argument can either be the name of a volume specified in the docker compose, or the host path of a bind, so for example "./cfg-data" for the bind "./cfg-data/:/cfg-data/" in the docker compose file.

The subpath is then a directory or chain of subdirectories which will be created in that volume or bind, so for example if host path is set to "./cfg-data" and subpath to "custom/config", the directory "/cfg-data/custom/config" will be available in the container.

The uploaded file will then be placed in the joined host- and subpath with its original filename. In total the final file path for an uploaded file from for example /home/user/Documents/configuration.json would result in the container in /cfg-data/custom/config/configuration.json.

Versioned Configuration

Versioned configurations provide the option of predefined configurations of any content type (i.e. text files, binary files, etc.).

You add versioned configurations with the following command:

$ iectl publisher standalone-app app-config add \
    --appname "my cool app" \
    --configname "my_version_config1" \
    --configdescription "displayed to the end-user during deployment" \
    --hostpath "./cfg-data/" \                                          # volume name or relative host path with bind
    --subpath "" \
    --secure \                                                              # Enabling the secure flag only stores the configuration encrypted on the Industrial Edge Management, but not on the Industrial Edge Device
    --versioned \
    --versionname "displayed to the end-user as selection option" \
    --versiondescription "displayed to the end-user as selection option" \
    --filepath /path/to/configuration/file                                  # filepath: File that shall finally be used as input

NOTICE

The behavior of host- and subpath are the same as for Unversioned configuration, but the filename is take from source file specified under filepath. For the example configuration above the resulting file location inside the container would then be /cfg-data/file (assuming the standard bind of "./cfg-data/:/cfg-data/").

Template-based Configuration - Text based

Text based configurations provide the option to adapt text based configurations (from templates) as required during the deployment.

You can add them with the following command:

$ iectl publisher standalone-app app-config add \
    --appname "my cool app" \
    --configname "text_based_config1" \
    --configdescription "displayed to the end-user during deployment" \
    --hostpath "./bind/path/on/host" \                                      # volume name or relative bind path
    --subpath "config/templated/" \
    --secure \                                                          # Enabling the secure flag only stores the configuration encrypted on the Industrial Edge Management, but not on the Industrial Edge Device
    --templatename "test_based_config_template1" \                      # displayed to the end-user during deployment
    --templatedescription "displayed to the end-user during deployment" \
    --filepath "/path/to/configuration/sample.json" \                   # File that shall be used as initial configuration, expected to be changed

NOTICE

Similar to versioned configuration is the filename taken from the template file specified in filepath. For the example above the resulting file path inside the container is /bindmount/config/tamplated/sample.json, asuming the bind "./bind/path/to/host:/bindmount" is specified in the docker compose file.

Template-based Configuration - Schema based

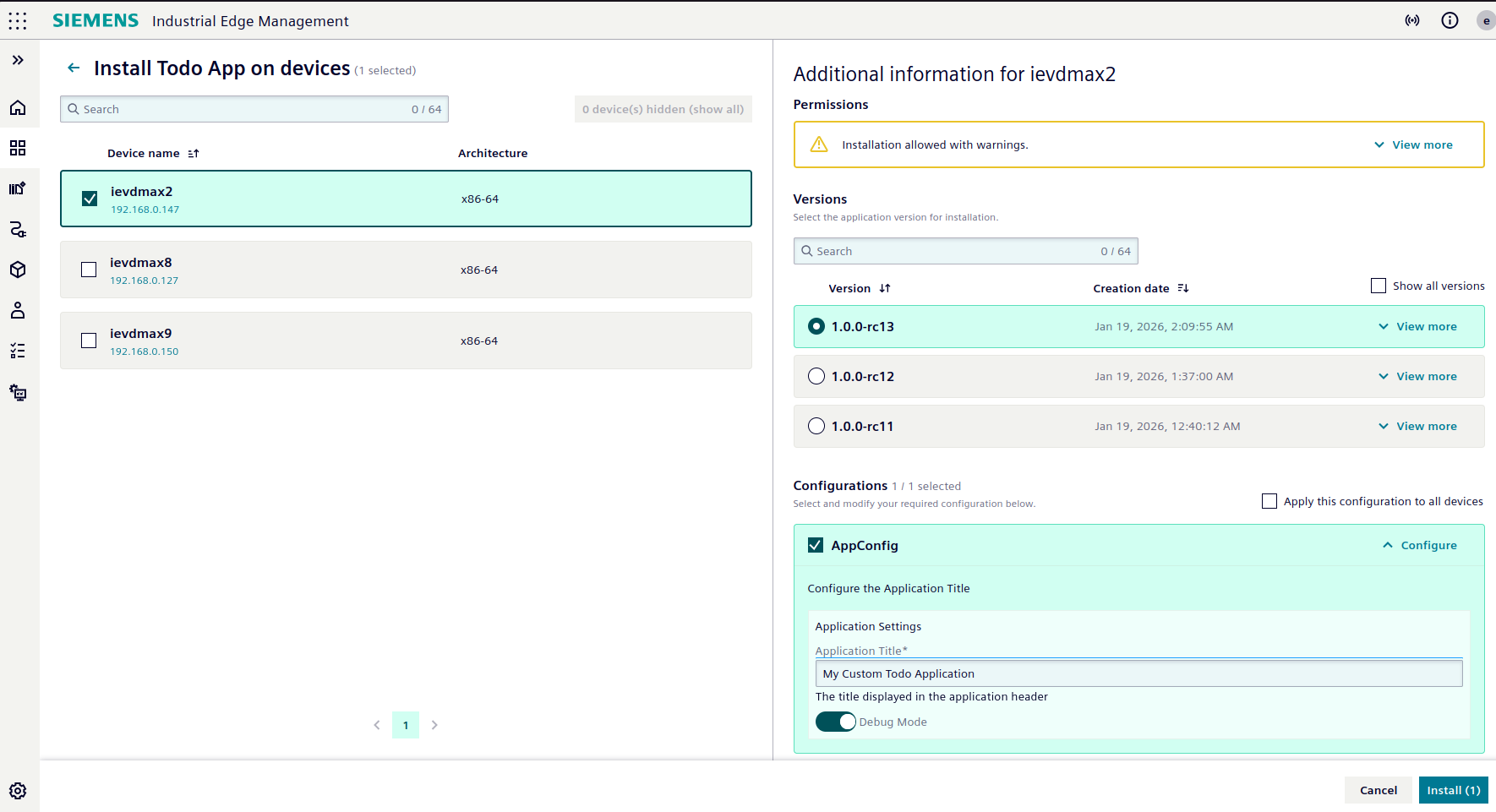

Schema based configurations give the user the option to provide configurations in a wizard, supporting complex types to create JSON based configurations.

You can add them with the following command:

$ iectl publisher standalone-app app-config add \
    --appname "my cool app" \
    --configname "schema_based_config1" \
    --configdescription "displayed to the end-user during deployment" \
    --hostpath "./cfg-data/" \
    --subpath "schema" \
    --secure \                                                              # Enabling the secure flag only stores the configuration encrypted on the Industrial Edge Management, but not on the Industrial Edge Device
    --templatename "schema_based_config_template1" \                        # displayed to the end-user during deployment
    --templatedescription "displayed to the end-user during deployment" \
    --jsonschema \
    --filepath /path/to/configuration/schema.json                           # filepath: File containing the JSON Schema

NOTICE

The Application Configuration Service creates using the JSON Schema specified in the provided file (and potentially user input) a new JSON file. This file is then stored using the same filename as provided under filepath. For the example above the resulting configuration file path inside the container would be /cfg-data/schema/schema.json (assuming default mount path "./cfg-data/:/cfg-data/").
